Rock wool sandwich panel is designed for high-end sandwich panel automated production line, with precise control of product geometry and strong compressive strength, tensile strength and shear strength. Rock wool and multi-modelling metal panel bonding composite, widely used in building roofing, exterior walls, partition panels and other sandwich panel enclosure structure.
Rock wool sandwich board is an insulation panel designed for building envelope and partition systems. It combines a rock wool core with facing materials to provide thermal insulation, sound absorption, and fire-resistant performance. Its structural strength and insulation properties make it suitable for a variety of commercial and industrial building applications.
Depending on project requirements, the panel can be used in exterior walls, roofs, partition walls, and other building enclosure structures. Density, thickness, dimensions, and facing options can be selected according to the intended application and system design.

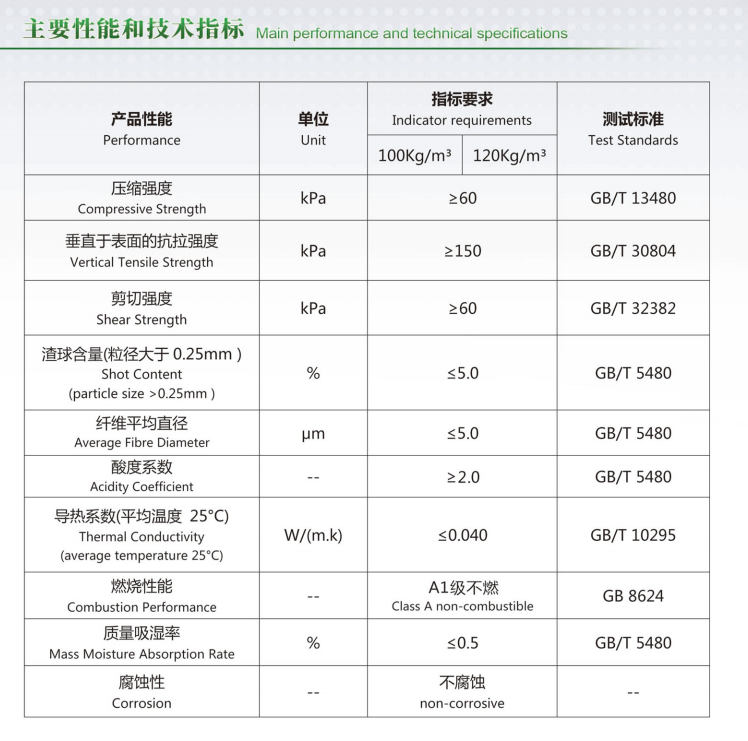

| Item | Specification |
|---|---|
| Nominal Density | 100 / 120 kg/m³ |
| Length | 1800 / 2400 mm |
| Width | 1170–1250 mm |
| Thickness | 80–150 mm |
| Compressive Strength | ≥ 60 kPa |
| Vertical Tensile Strength | ≥ 150 kPa |
| Shear Strength | ≥ 60 kPa |
| Thermal Conductivity | ≤ 0.040 W/(m·K) |
| Combustion Performance | Class A non-combustible, as specified |
| Mass Moisture Absorption Rate | ≤ 0.5% |
The specifications above are based on the provided product data. Please confirm the applicable grade, test conditions, and final technical requirements before ordering.
Rock wool sandwich boards are commonly used in building roofs, exterior walls, partition systems, and other insulated enclosure structures. They are suitable for projects that require thermal insulation, acoustic performance, and fire safety.
Density, thickness, dimensions, and panel configurations can be discussed according to project drawings and application requirements. Contact our team for product details and a suitable quotation.
